SEVADIS EVMCALM MAXICHARGER ALM METER

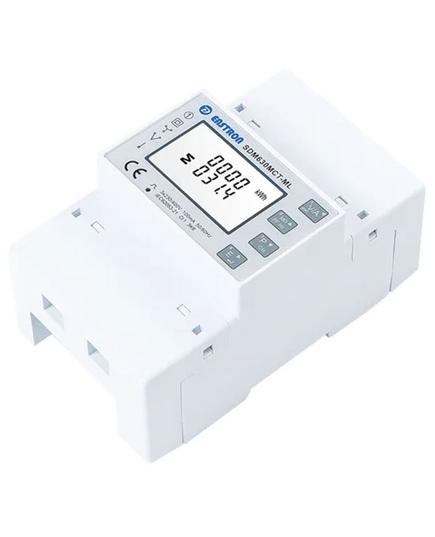

This Sevadis 22kW MaxiCharger dynamic load balancing (DLB) Power Meter is a high accuracy multifunction power meter that has been developed with easy to use plug in connections.
This negates the need to traditionally wire into the meter, saving on installation time as well as eliminating wiring errors.
Configurable 1p2w or 3p4w systems and hosting a vast range of measuring parameters such as Amps, Volts, Power, Power and Current Demand, Power Factor, imported and exported kWh and total harmonics. It is one of the most user-friendly multifunction power meters on the market from installation to end client use.
The Power Meter meter comes complete with RS485 Modbus RTU and dual pulsed outputs as standard.
Product Features
- 1A or 5A Programmable CT Input
- Built In RS485 Modbus RTU
- Single & Three Phase Networks
- Import / Export kWh
- RJ12 Plug-in CT connection
- Material: Plastic
- Colour: White
- Dimensions: W72xH65xD94.5mm
- CE Certified
- Warranty: 3 Years
DLB Demonstration Video - Dynamic Load Balancing
