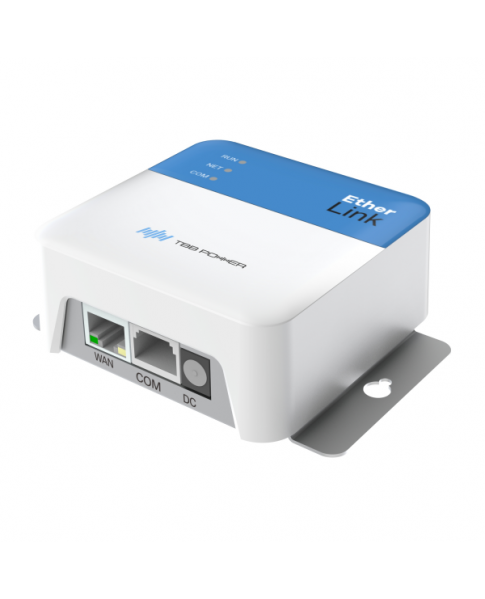

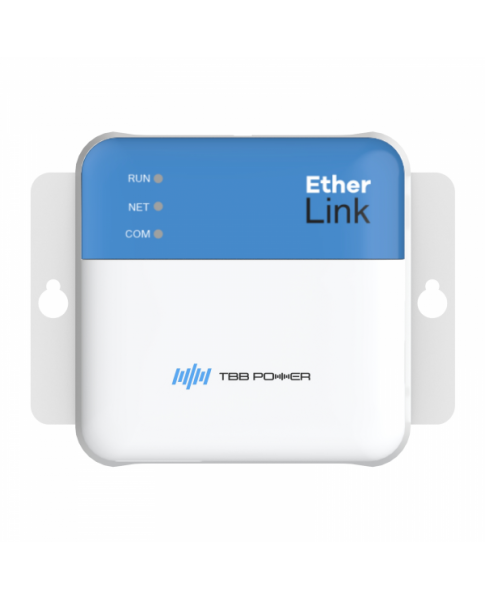

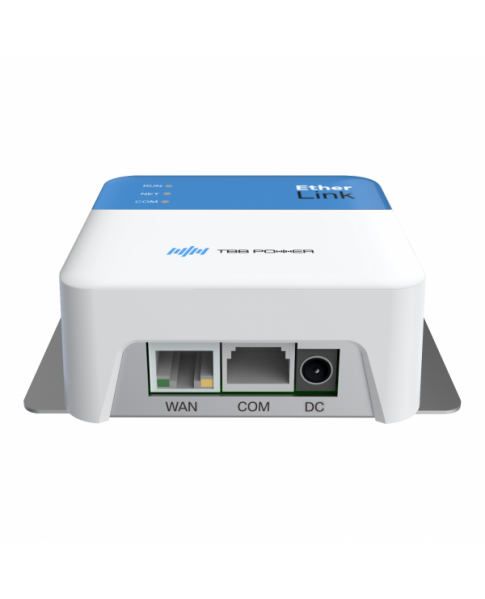

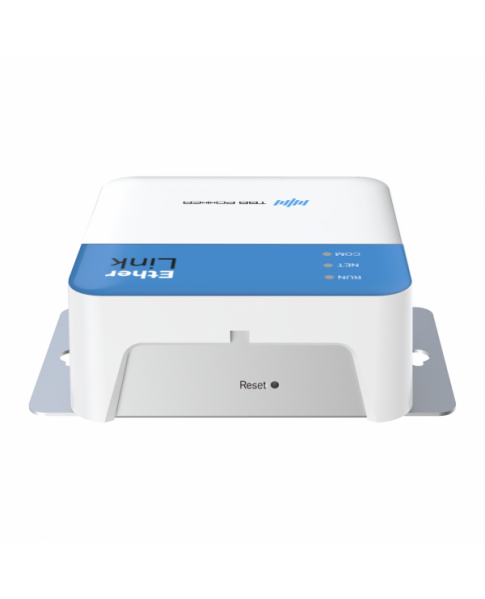

TBB Power Ether Link Communication Module
The TBB-ELINK module provides reliable, real-time data transmission and access to historical records for TBB systems. Built for seamless remote monitoring and control, ELINK connects through a wired Ethernet connection to the TBB NOVA Web and App for accessible system oversight.
Key Features:
- Remote monitoring and control: Easily access real-time data and manage TBB systems remotely via the TBB NOVA Web and App, enhancing the user experience.
- SNMP protocol support: Advanced monitoring capabilities enable localized and customized management, as well as privacy protection and cost-effectiveness within a LAN.
- Robust ethernet connectivity: Equipped with a 10/100Mbps Ethernet interface supporting IEEE 802.3 flow control for full duplex and CSMA/CD protocol for half duplex operation, ensuring stable connectivity with routers.
- Dedicated TBB interface: Seamlessly integrates with TBB products through a standard TBB communication interface.
Reliable performance:
Powered by an ARM Cortex M4 core with a bus frequency of up to 144MHz, TBB-ELINK is built to withstand industrial-grade temperature ranges, delivering consistent and secure communication.
Connect the TBB-ELINK module to your TBB system for enhanced data visibility, control, and secure integration into custom monitoring platforms.
TBB ELINK communication module specifications:
- Operating voltage range: 9-16V
- Operating current range: 5-250mA
- Power supply: 12V 500mA (stable DC power source)
- Bandwidth: 10/100Mbps
- Communication port: RJ45
- Operating temperature range: -30°C to +75°C
- Protection: IP20
- Operating altitude: <5000m
- Relative humidity: 10-85>#/li###
- Dimensions: 108.6 x 84.92 x 40.3 mm
- Net weight: 200g
This product is covered by a 5 year manufacturer warranty. For more information please refer to our Terms and Conditions.
