200Ah 12V Lithium Battery for Leisure, Solar, Wind and Off-grid applications
What is the LFP12-200?

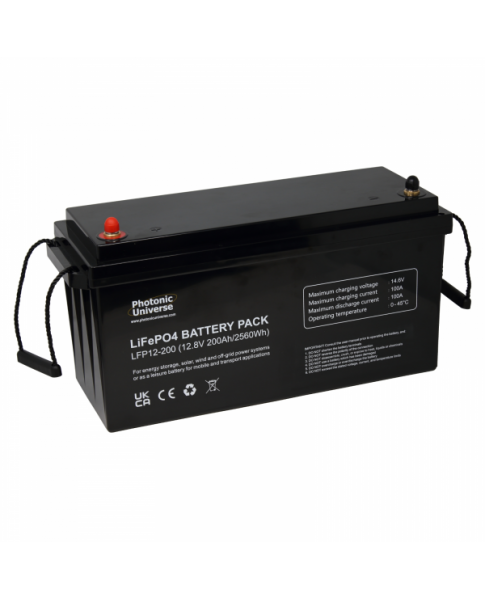

The LFP12-200 is a high-performance 200Ah 12V Lithium Iron Phosphate (LiFePO4) battery, offering exceptional reliability, safety, and long service life. Unlike traditional lead-acid batteries, it features a built-in Battery Management System (BMS) that actively monitors and protects the battery for safe and efficient operation.
Additionally, the LFP12-200 includes Bluetooth connectivity via the XiaoXiangElectric app (available on IOS and Android), allowing users to monitor and manage battery performance in real time.
Key Benefits of the LFP12-200
- Long Cycle Life – Up to 6,000 cycles at 80% depth of discharge, significantly outlasting lead-acid alternatives.
- Enhanced Safety – The BMS protects against:
- Overcharging
- Over-discharging
- Over-current
- Over-temperature
- Fast Charging & Discharging – High efficiency reduces downtime.
- Lightweight Design – Much lighter than lead-acid batteries, making it easier to install and handle.
- Environmentally Friendly – Non-toxic, with a lower environmental impact.
- Bluetooth Monitoring – Connects via the XiaoXiangElectric app, offering:
- Real-time battery data: Remaining capacity, charge/discharge status, voltage, current, temperature, and individual cell voltage.
- Historical dynamic graphs: Track battery performance trends over time.
- Charge & discharge switch control: Manage charging and discharging remotely.
- Automatic equalization: Ensures balanced cell performance.
- Clear warnings & capacity reset: Helps maintain battery health.
- Customisable settings: Rename the Bluetooth device and switch monitoring between multiple batteries.
Deep Cycle Applications
The LFP12-200 is designed for deep cycle use, making it ideal for:
- Leisure Batteries – Caravans, motorhomes, campervans, and boats.
- Renewable Energy Systems – Solar and wind energy storage.
- Off-Grid Power – Lighting, telecommunications, networking equipment.
- Emergency Power – UPS systems and backup energy storage.
Longevity & Maintenance
With a lifespan of over 10 years, the LFP12-200 is a cost-effective, low-maintenance energy solution.
Packaging
Comes securely packaged with bolts, washers, and a user manual for easy installation.
The LFP12-200 combines cutting-edge lithium technology with smart Bluetooth monitoring, making it an excellent choice for modern energy storage needs.
Battery specifications:
- Nominal voltage: 12.8V
- Nominal capacity: 200Ah
- Nominal energy: 2560Wh
- Life cycle: 6000 cycles @80% DoD, at 25°C
- Recommended charge voltage: 14.6V
- Maximum charge current: 100A
- Recommended charge current: 20A
- Maximum discharge current: 100A
- Operating charge temperature: from 0°C to +45°C
- Operating discharge temperature: from -20°C to +55°C
- Humidity: 5-95% (RH)
- Altitude: <4000m
- Size: 502 x 186 x 243 mm
- Weight: 23kg
This product is covered by a 5 year warranty. For more information please refer to our Terms and Conditions.
